Reference:

https://github.blog/security/vulnerability-research/codeql-zero-to-hero-part-4-gradio-framework-case-study/

老样子阅读能力好的，建议直接看原文享受顶级讲解

Gradio framework case study

Gradio

Gradio 是一个用于构建交互式机器学习模型演示和用户界面的 Python 库。它可以让开发者快速地创建基于网页的界面，方便其他人通过浏览器与机器学习模型或其他函数进行交互。

Gradio interface

通过调用 gradio 的interface类可以很快创建一个界面

1
2
3
4
5
6
7
8
9
10
11
import gradio as gr

def greet(name, intensity):
    return "Hello, " + name + "!" * int(intensity)

demo = gr.Interface(
    fn=greet,
    inputs=[gr.Textbox(), gr.Slider()],
    outputs=[gr.Textbox()])

demo.launch()

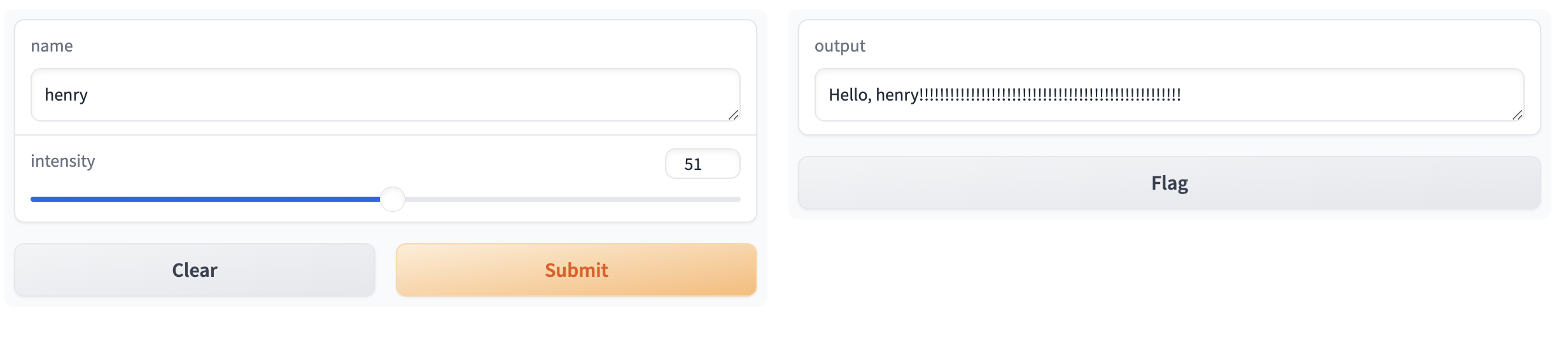

很快就创建出了如下界面：

Snipaste_2024-12-17_17-25-06

Gradio Blocks

Gradio 文档中是这样描述Blocks类的

Blocks offers more flexibility and control over:

​ (1) the layout of components

​ (2) the events that trigger the execution of functions

​ (3) data flows (for example, inputs can trigger outputs, which can trigger the next level of outputs).

可见 Blocks 类的功能相比于interface会更加强大

下面是一个使用的例子，创建了滑块，下拉选项，复选框，单选按钮，单选框

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import gradio as gr

def sentence_builder(quantity, animal, countries, place, morning):
    return f"""The {quantity} {animal}s from {" and ".join(countries)} went to the {place} in the {"morning" if morning else "night"}"""

with gr.Blocks() as demo:

    gr.Markdown("Choose the options and then click **Run** to see the output.")
    with gr.Row():
        quantity = gr.Slider(2, 20, value=4, label="Count", info="Choose between 2 and 20")
        animal = gr.Dropdown(["cat", "dog", "bird"], label="Animal", info="Will add more animals later!")
        countries = gr.CheckboxGroup(["USA", "Japan", "Pakistan"], label="Countries", info="Where are they from?")
        place = gr.Radio(["park", "zoo", "road"], label="Location", info="Where did they go?")
        morning = gr.Checkbox(label="Morning", info="Did they do it in the morning?")

    btn = gr.Button("Run")
    btn.click(
        fn=sentence_builder,
        inputs=[quantity, animal, countries, place, morning],
        outputs=gr.Textbox(label="Output")
    )

if __name__ == "__main__":
    demo.launch(debug=True)

输入组件种类及功能：

​ • Slider：滑块输入，用于选择数量范围（2 到 20），默认值为 4。

​ • Dropdown：下拉选择框，用户从预设列表中选择动物。

​ • CheckboxGroup：多选框组，允许用户选择多个国家。

​ • Radio：单选按钮，用于选择位置（如公园、动物园或道路）。

​ • Checkbox：单选框，用于选择布尔值（是否在早晨发生）。

共有特性：

​ • label：显示在组件上的标题。

​ • info：帮助文本，为用户提供额外的说明。

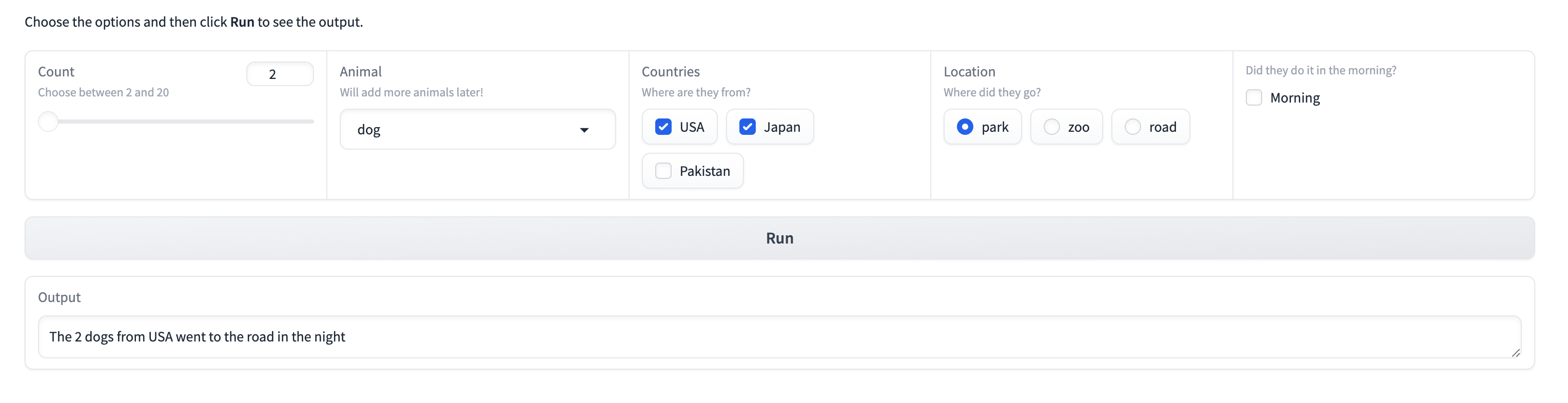

Snipaste_2024-12-17_17-39-14

需要注意的是 gr.Button 创建了一个名为 “Run” 的按钮，并为这个按钮绑定了一个事件，其中btn.click 关联了以下内容：

​ • fn：点击按钮后调用的函数，这里是 sentence_builder。

​ • inputs：传递给函数的输入组件，按顺序是 quantity, animal, countries, place, morning。

​ • outputs：函数输出的显示位置，这里是一个 Textbox，用来显示结果。

Identifying attack surface in Gradio

找到一些sources点，从输入下手，首先的一些简单思路就是设置一些不符合原本规范的值，

Modeling Gradio with CodeQL

这里原作者给出了两个使用 gradio 存在命令执行的例子，其中 folder 和 logs 作为execute_cmd的参数，然后这两个参数被当作命令的一部分进行执行。

使用interface 类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
import gradio as gr
import os

def execute_cmd(folder, logs):
    cmd = f"python caption.py --dir={folder} --logs={logs}"
    os.system(cmd)
    return f"Command: {cmd}"


folder = gr.Textbox(placeholder="Directory to caption")
logs = gr.Checkbox(label="Save verbose logs")
output = gr.Textbox()

demo = gr.Interface(
    fn=execute_cmd,
    inputs=[folder, logs],
    outputs=output)

if __name__ == "__main__":
    demo.launch(debug=True)

使用Blocks类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
import gradio as gr
import os

def execute_cmd(folder, logs):
    cmd = f"python caption.py --dir={folder} --logs={logs}"
    os.system(cmd)


with gr.Blocks() as demo:
    gr.Markdown("Create caption files for images in a directory")
    with gr.Row():
        folder = gr.Textbox(placeholder="Directory to caption")
        logs = gr.Checkbox(label="Add verbose logs")

    btn = gr.Button("Run")
    btn.click(fn=execute_cmd, inputs=[folder, logs])


if __name__ == "__main__":
    demo.launch(debug=True)

尝试使用 CodeQL CLI 对codeql-zero-to-hero 路径4/vulnerable-code-snippets 建立CodeQL database，在https://henrymartin262.github.io/2024/12/11/codeql_note/ 已有介绍

1
gh codeql database create gradio-codeql-db --language=python

在上面这两个例子当中，folder 和 logs 就是 sources

Modeling gr.interface

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
 * @kind problem
 * @severity error
 * @id githubsecuritylab/4-1
 */

 import python
 import semmle.python.ApiGraphs

from API::CallNode node
where node =
    API::moduleImport("gradio").getMember("Interface").getACall()
select node, "call to interface"

通过上面的方法可以找到所有调用 gr.interface 的调用点

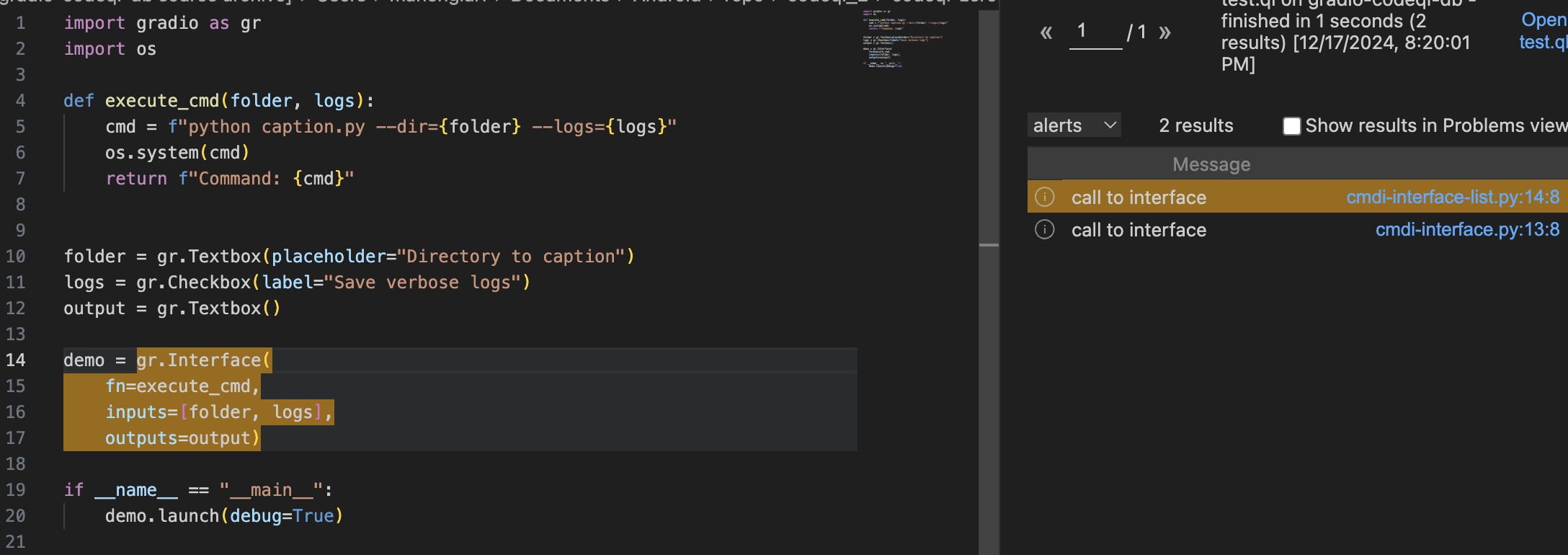

Snipaste_2024-12-17_20-21-27

下面这段代码用于继续找到folder和logs两个参数

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
 * @kind problem
 * @severity error
 * @id githubsecuritylab/4-1
 */

 import python
 import semmle.python.ApiGraphs

from API::CallNode node
where node =
    API::moduleImport("gradio").getMember("Interface").getACall()
select node.getParameter(0, "fn").getParameter(_), "Gradio sources"

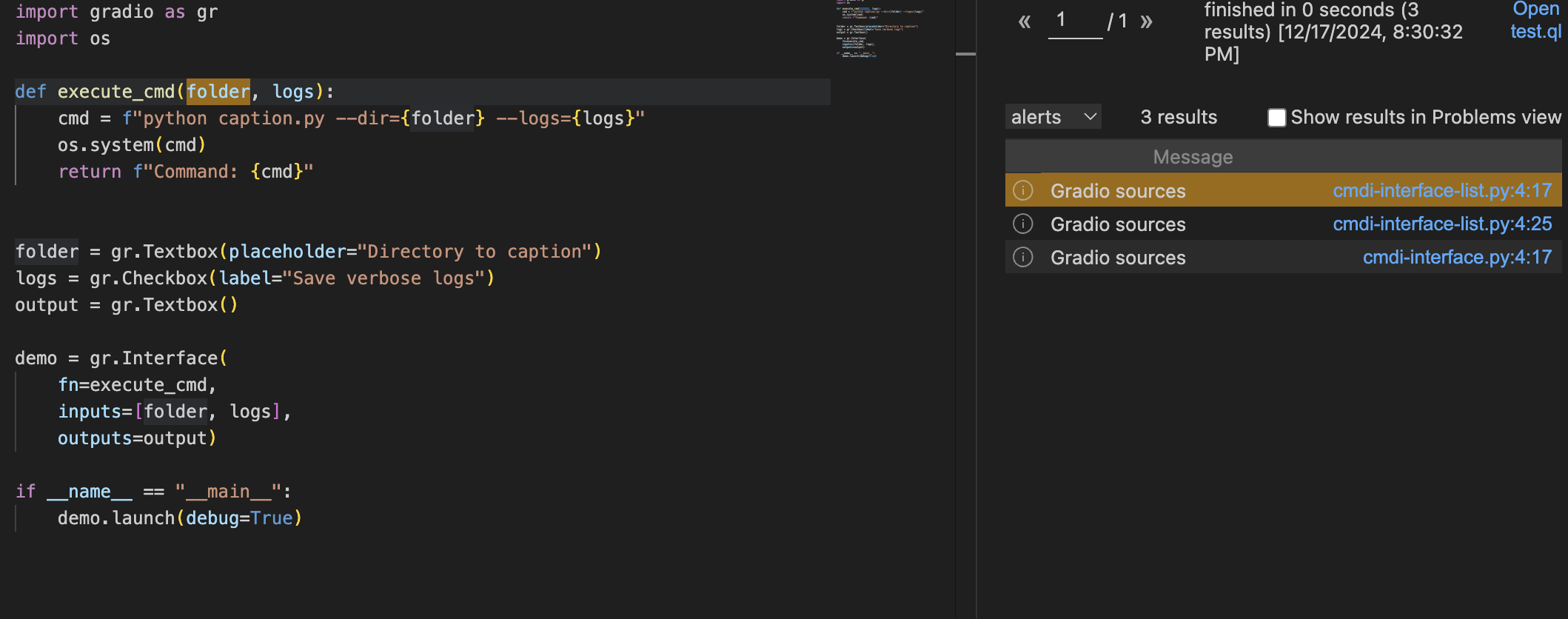

Snipaste_2024-12-17_20-30-44

可以使用下面的class来进行封装

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
/**
 * @kind problem
 * @severity error
 * @id githubsecuritylab/4-1
 */

 import python
 import semmle.python.ApiGraphs
 import semmle.python.dataflow.new.RemoteFlowSources

class GradioInterface extends RemoteFlowSource::Range{
    GradioInterface(){
        exists(API::CallNode n |
        n = API::moduleImport("gradio").getMember("Interface").getACall()
        and this = n.getParameter(0, "fn").getParameter(_).asSource())
    }
    override string getSourceType(){result = "Gradio vuln input"}
}

from GradioInterface src
select src, "Gradio sources"

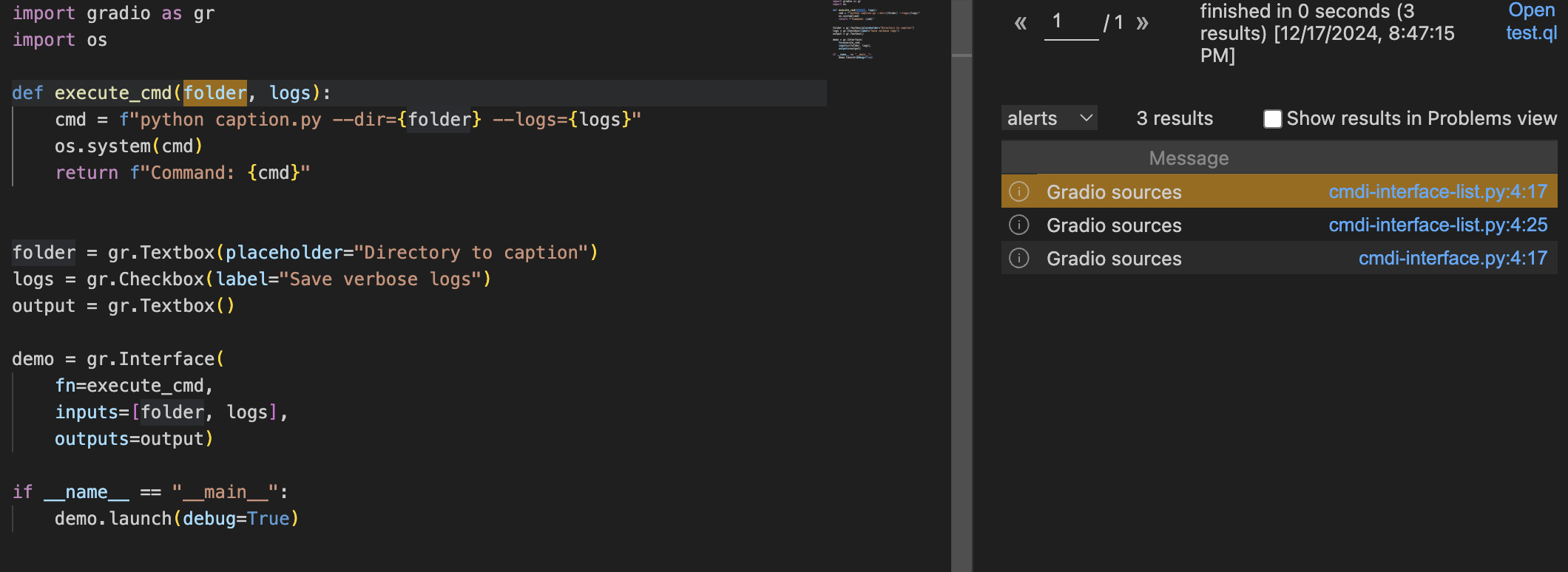

Snipaste_2024-12-17_20-48-05

注意这里使用了RemoteFlowSource::Range这个抽象类，简单来说这个类定义了很多source，其中就包括我们上面找到的这三个source，可以简单验证一下

1
2
3
4
5
6
7
8
9
10
11
12
/**
 * @kind problem
 * @severity error
 * @id githubsecuritylab/4-1
 */

 import python
 import semmle.python.ApiGraphs
 import semmle.python.dataflow.new.RemoteFlowSources

from RemoteFlowSource rfs
select rfs, "Gradio sources"

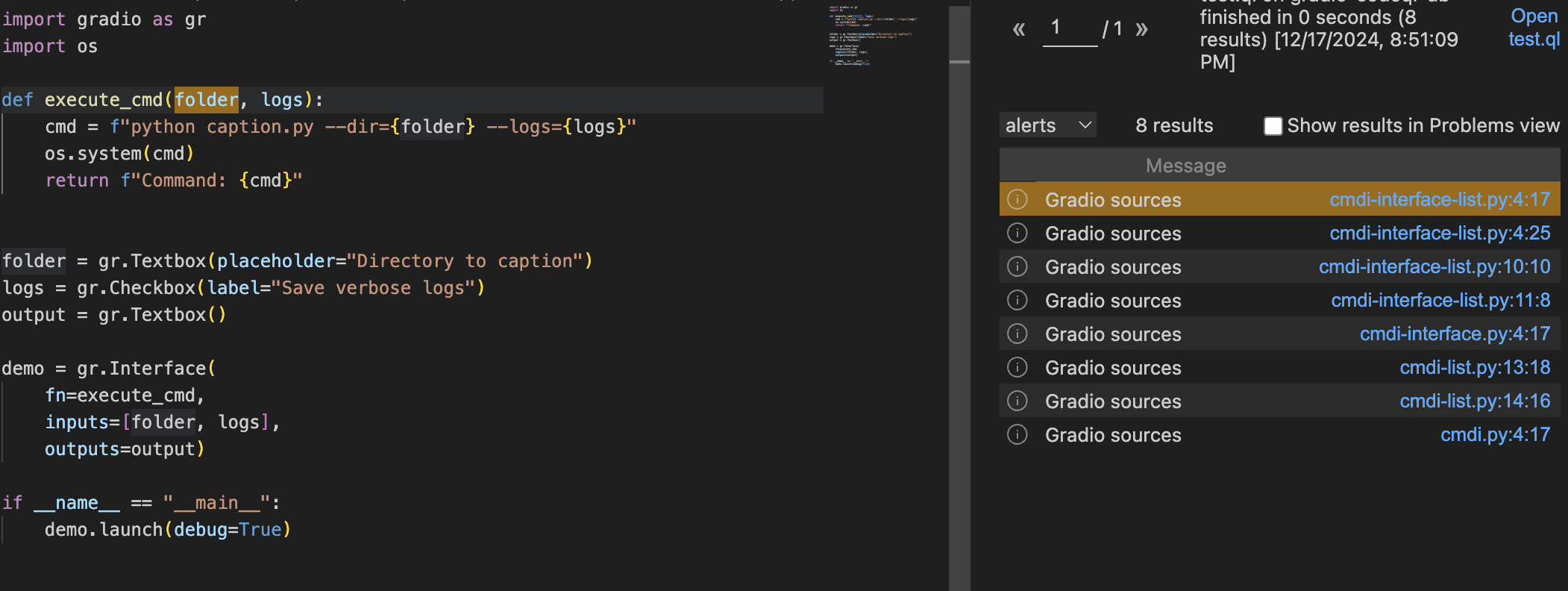

Snipaste_2024-12-17_20-52-11

事实也确实如此

Modeling gr.Button

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
/**
 * @kind problem
 * @severity error
 * @id githubsecuritylab/4-1
 */

 import python
 import semmle.python.ApiGraphs
 import semmle.python.dataflow.new.RemoteFlowSources

class GradioInterface extends RemoteFlowSource::Range{
    GradioInterface(){
        exists(API::CallNode n |
        n = API::moduleImport("gradio").getMember("Button").getReturn().getMember("click").getACall()
        and this = n.getParameter(0, "fn").getParameter(_).asSource())
    }
    override string getSourceType(){result = "Gradio Blocks vuln input"}
}

from GradioInterface src
select src, "Gradio sources"

对interface中的代码简单修改就可以得到对应Blocks类对应的source。

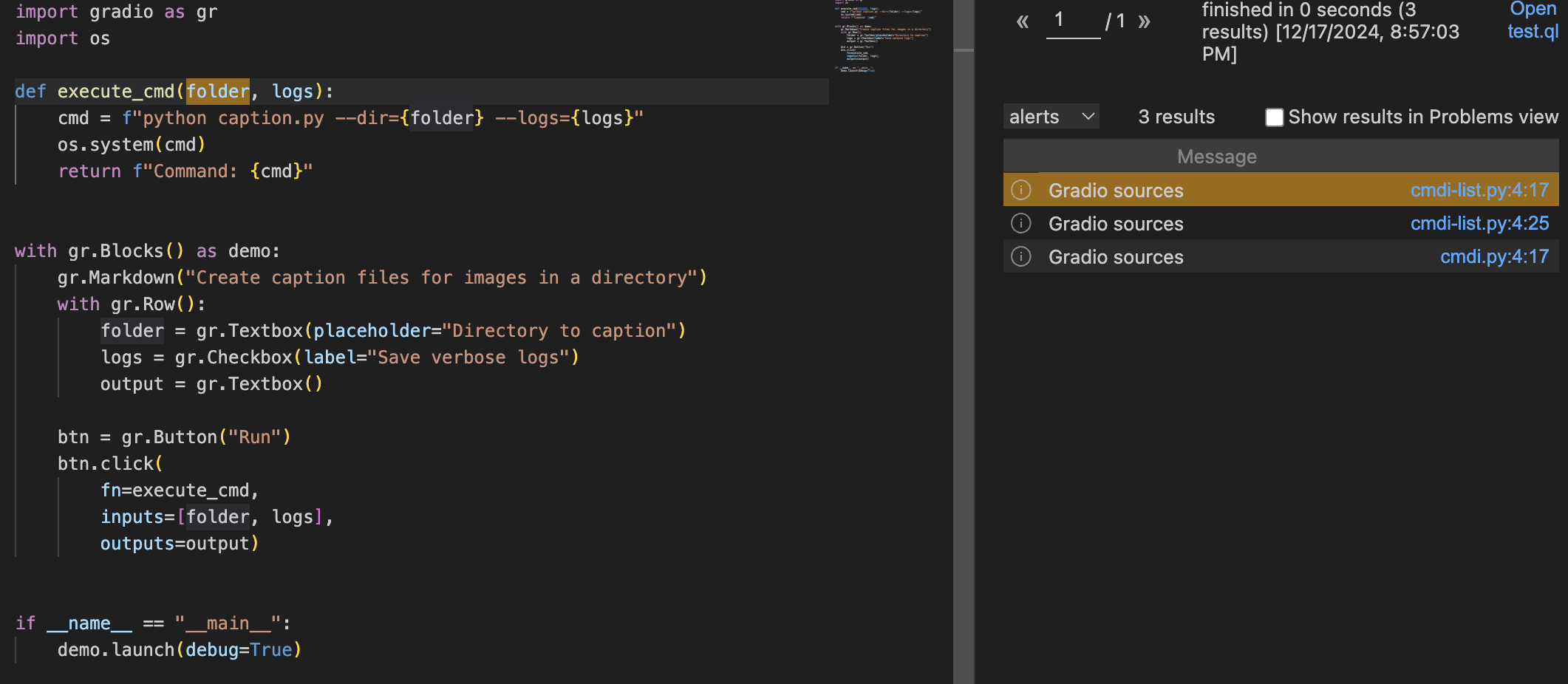

Snipaste_2024-12-17_20-58-43

使用前面写的两个例子作为source，然后只需要定义一个sink，我们就可以实现数据流分析了，具体如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
/**
 * @id codeql-zero-to-hero/4-7
 * @severity error
 * @kind path-problem
 */


 import python
 import semmle.python.dataflow.new.DataFlow
 import semmle.python.dataflow.new.TaintTracking
 import semmle.python.ApiGraphs
 import semmle.python.dataflow.new.RemoteFlowSources
 import MyFlow::PathGraph

class GradioButton extends RemoteFlowSource::Range {
    GradioButton() {
        exists(API::CallNode n |
        n = API::moduleImport("gradio").getMember("Button").getReturn()
        .getMember("click").getACall() |
        this = n.getParameter(0, "fn").getParameter(_).asSource())
    }

    override string getSourceType() { result = "Gradio untrusted input" }

 }

 class GradioInterface extends RemoteFlowSource::Range {
    GradioInterface() {
        exists(API::CallNode n |
        n = API::moduleImport("gradio").getMember("Interface").getACall() |
        this = n.getParameter(0, "fn").getParameter(_).asSource())
    }
    override string getSourceType() { result = "Gradio untrusted input" }

 }


class OsSystemSink extends API::CallNode {
    OsSystemSink() {
        this = API::moduleImport("os").getMember("system").getACall()
    }
}


 private module MyConfig implements DataFlow::ConfigSig {
   predicate isSource(DataFlow::Node source) {
     source instanceof GradioButton
     or
     source instanceof GradioInterface
   }

   predicate isSink(DataFlow::Node sink) {
    exists(OsSystemSink call |
        sink = call.getArg(0)
        )
   }
 }

 module MyFlow = TaintTracking::Global<MyConfig>;

 from MyFlow::PathNode source, MyFlow::PathNode sink
 where MyFlow::flowPath(source, sink)
 select sink.getNode(), source, sink, "Data Flow from a Gradio source to `os.system`"

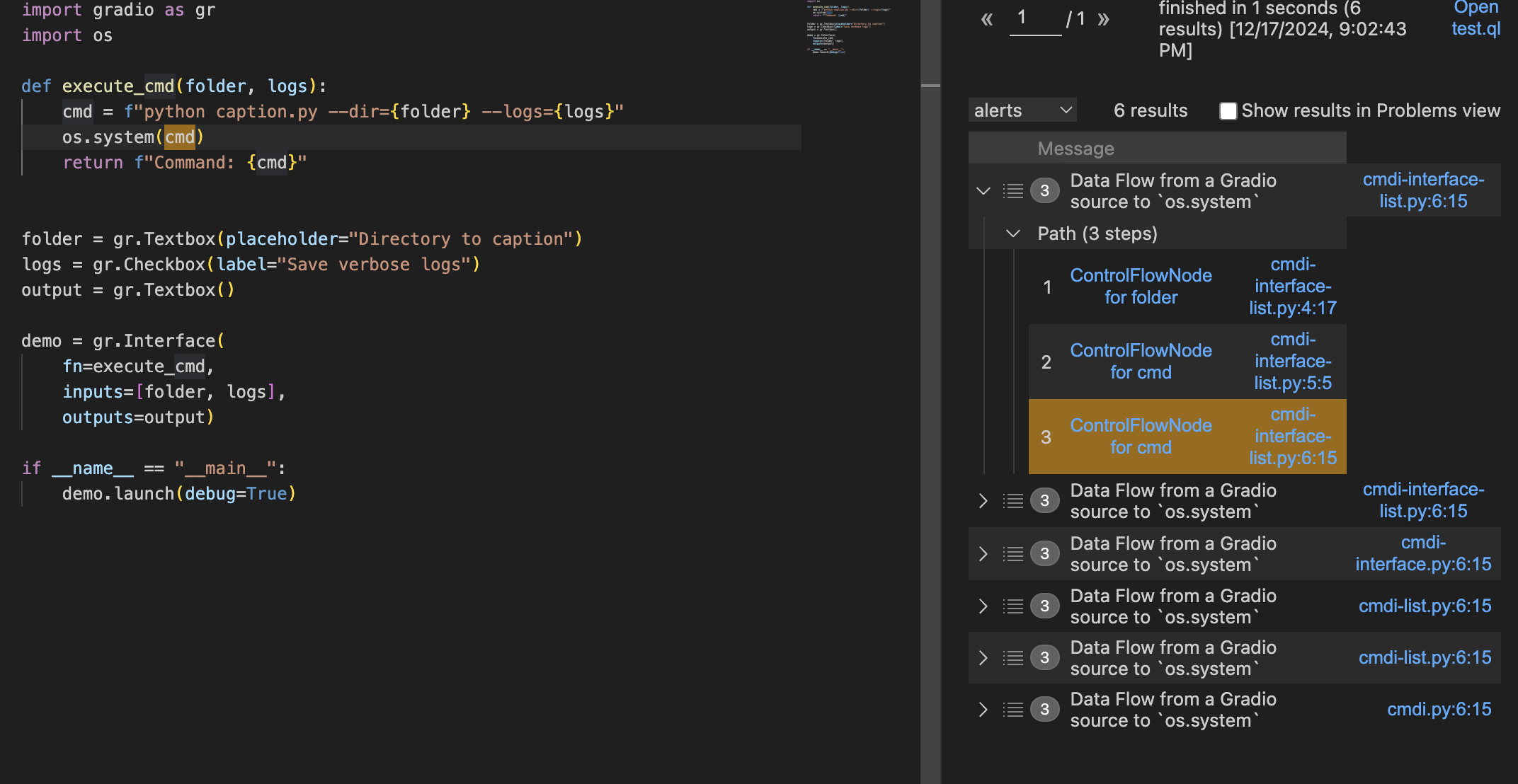

Snipaste_2024-12-17_21-04-39
